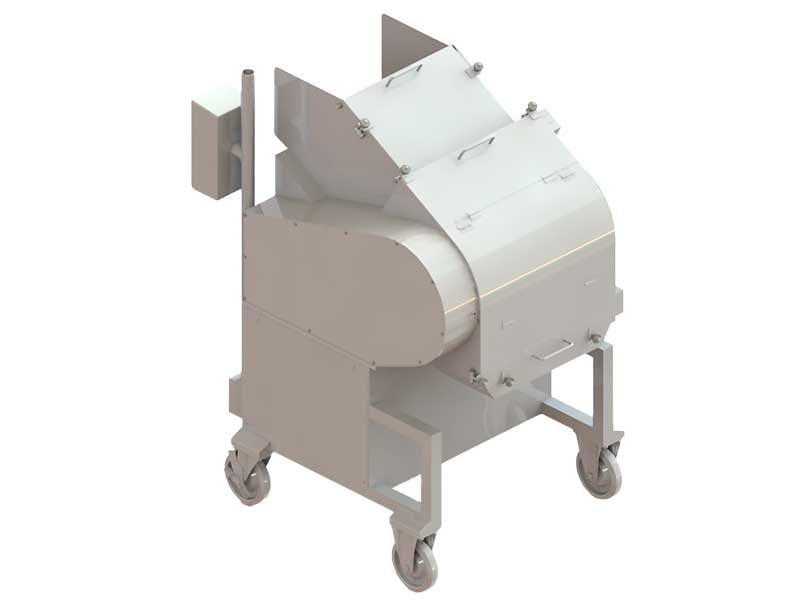

Frozen Material Crusher "Frozen Flaker"
Smoothly crushes frozen materials to streamline primary processing.
Higashimoto Kikai's Frozen Flaker is a powerful primary crusher that efficiently flakes frozen meat (-8°C) and cheese (-20°C).

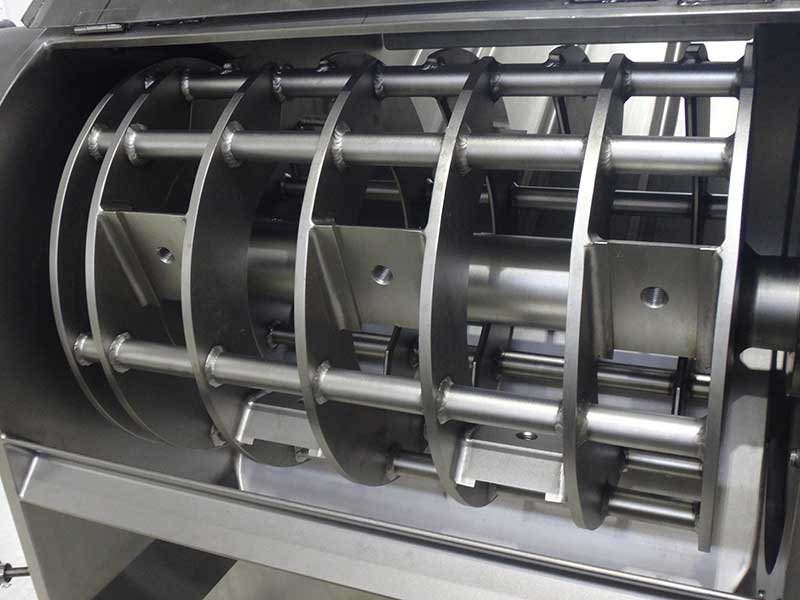

With specially designed blades and precise rotational control, it delivers stable crushing performance. It also excels in hygiene and safety, making it ideal for the food industry.
- Specializing in “crushing” instead of “cutting”
- Full-open drum cover
- Equipped with interlock safety system
- All-stainless steel frame
SPECIFICATIONS
← You can scroll side to side. →

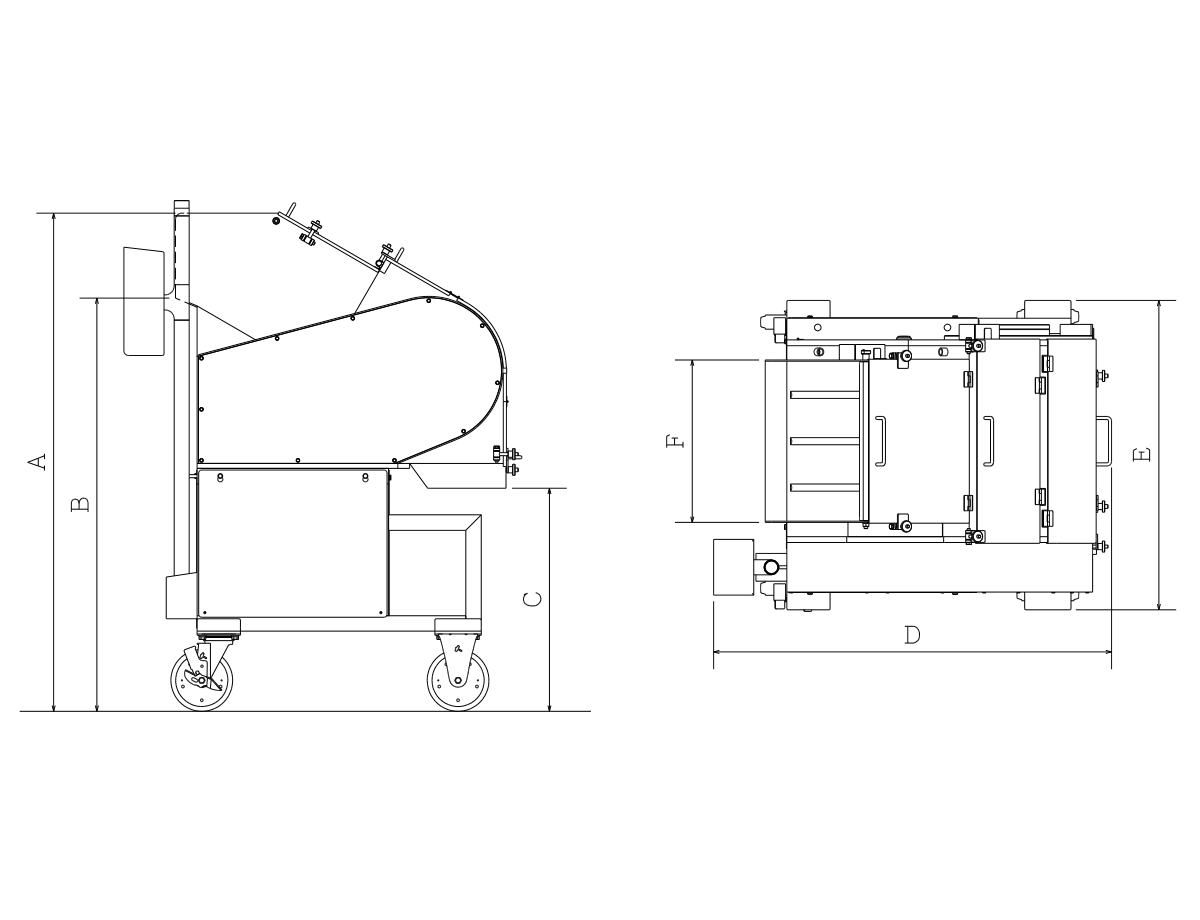

| A | B | C | D | E | F | Electric capacity (kW) |
|---|---|---|---|---|---|---|
| 1610 | 1335 | 720 | 1290 | 1000 | 525 | 5.5kW |
- Drum dimensions: φ400 mm × Width 500 mm (custom design available)
- Rotation speed: 145 rpm (50 Hz) Rotation speed adjustable via inverter control (optional)
- Minimum raw material temperature: -8°C (meat), -20°C (cheese)
- Processing capacity: 1.5 t/h (meat), 3.5 t/h (cheese)
- Safety cover with interlock on curtain and drum cover section
- Feed and discharge sections can be custom-designed to match production line layout
All specifications can be changed to suit your needs. Please feel free to contact us!
