Side Discharge Mixer "Open Mixer (Side Discharge)"
Quickly disperses and mixes products, ideal for continuous production lines.

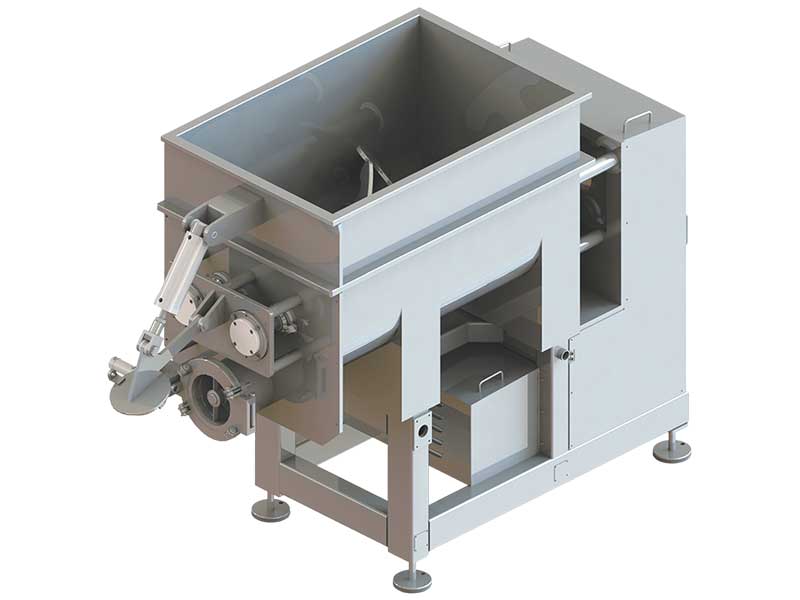

Higashimoto Kikai’s Open Mixer (Side Discharge) disperses and mixes various products in a short time, efficiently discharging them to the next process.
Thanks to its side discharge design, it is ideal for use in continuous production lines.

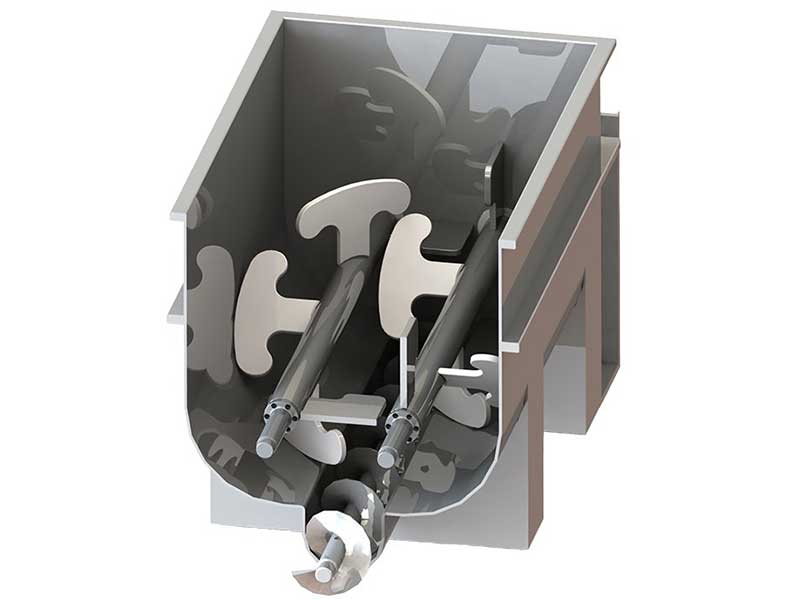

- Equipped with side discharge screw

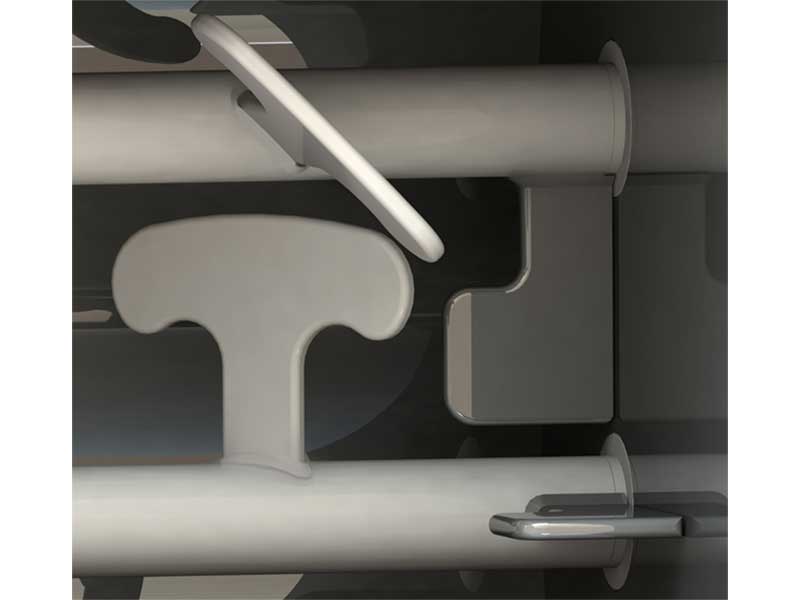

- Cross-designed paddles for uniform mixing
- Excellent cleanability
- Safety design with no risk of tank tipping
- All-stainless steel frame
SPECIFICATIONS
← You can scroll side to side. →

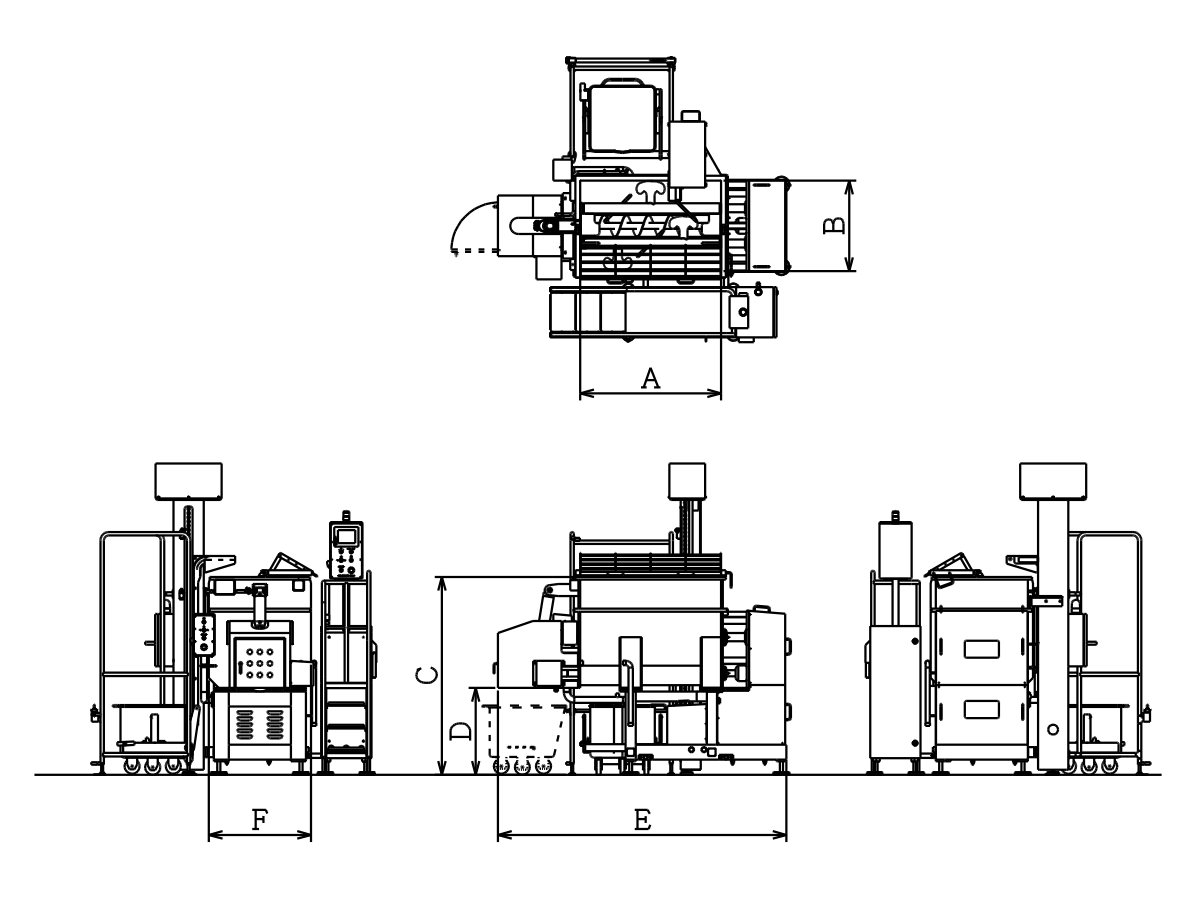

| Capacity | A | B | C | D | E | F | Electric capacity (kW) |
|---|---|---|---|---|---|---|---|
| 550L | 1080 | 760 | 2050 | 1100 | 2475 | 770 | 9.2kW |
| 1000L | 1400 | 900 | 1970 | 864 | 2870 | 1018 | 17.2kW |
- All stainless steel construction (SUS304)
- Tank capacity: 1000 L / 550 L Tank capacity customizable upon request
- Paddle rotation speed: 10 to 45 rpm
- Discharge screw speed: 63 rpm
- Feeding method: Lift Boy (sold separately)
- C.I.P. cleaning system available upon request
All specifications can be changed to suit your needs. Please feel free to contact us!
