Quick mixing and side discharge in a short time! "Open Mixer (One-Side Discharge)"
Ideal for continuous lines—efficient mixing and discharge without a discharge screw.

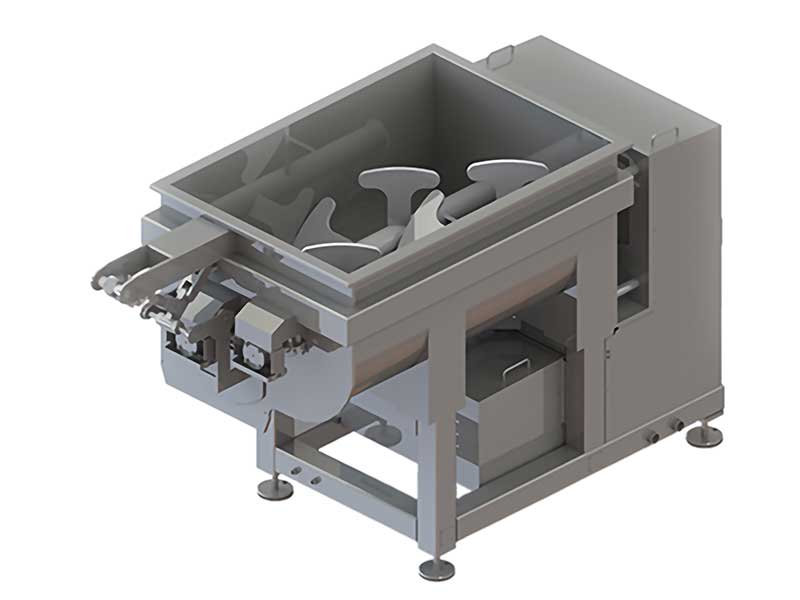

Higashimoto Kikai’s Open Mixer (One-Side Discharge) disperses and mixes various products in a short time, and discharges naturally without tilting the tank.
With a screw-less discharge structure, it offers a simple and hygienic design, making it ideal for use in continuous production lines.

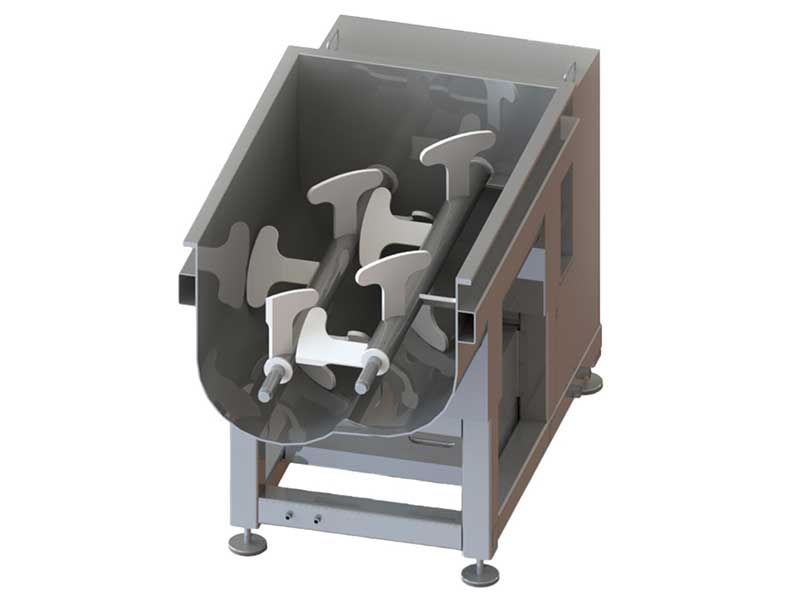

- Natural discharge without discharge screw

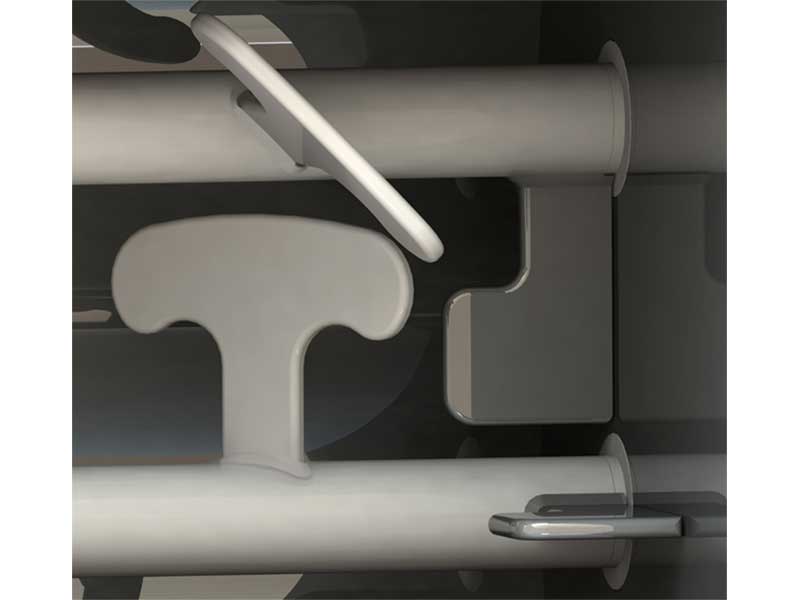

- Cross-designed mixing paddles
- Excellent cleanability (shaft seal can be cleaned and inspected)
- Safe design with no risk of tank tipping
- All-stainless steel frame

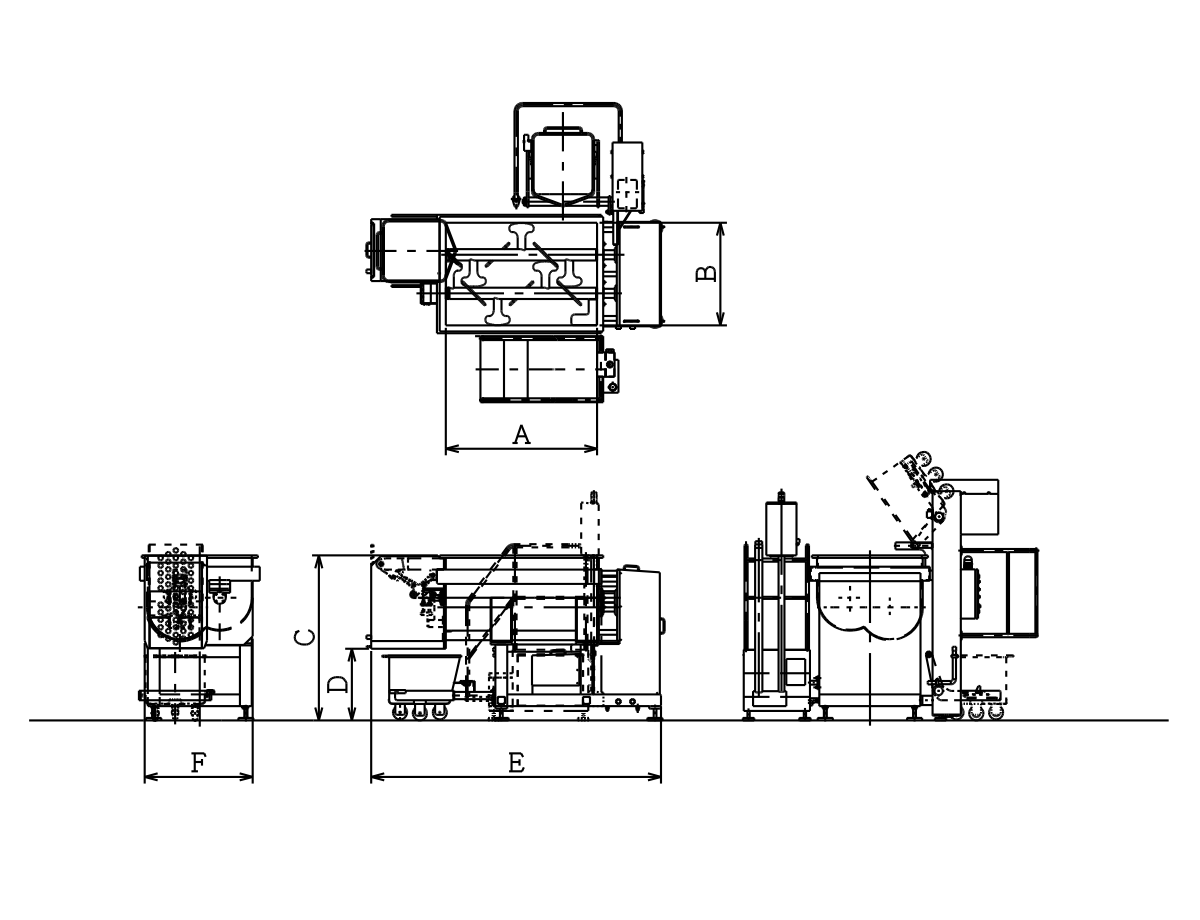

SPECIFICATIONS
← You can scroll side to side. →
| Capacity | A | B | C | D | E | F | Electric capacity (kW) |
|---|---|---|---|---|---|---|---|
| 1000L | 1400 | 890 | 1740 | 615 | 2800 | 1023 | 17.2kW |
| 1400L | 1600 | 1087.9 | 1750 | 760 | 3063 | 1142 | 22kW |
- All stainless steel construction (SUS304)
- Vacuum type / Open type
- Tank capacity: 1400 L / 1000 L Tank capacity customizable upon request
- Paddle rotation speed: 10 to 45 rpm
- Feeding method: Lift Boy (sold separately)
All specifications can be changed to suit your needs. Please feel free to contact us!
